Thank You For Purchasing Metronic, One of Our Premium Items!
If you have any questions that are beyond the scope of this help file, please email our support
support@keenthemes.com.
Overview
Metronic is a responsive admin dashboard template powered with Twitter Bootstrap Framework for admin and backend applications. Metronic has a clean and intuitive metro style design which makes your next project look awesome and yet user friendly. Metronic comes with a huge collection of plugins and UI components and it works in all major web browsers, tablets and phones.

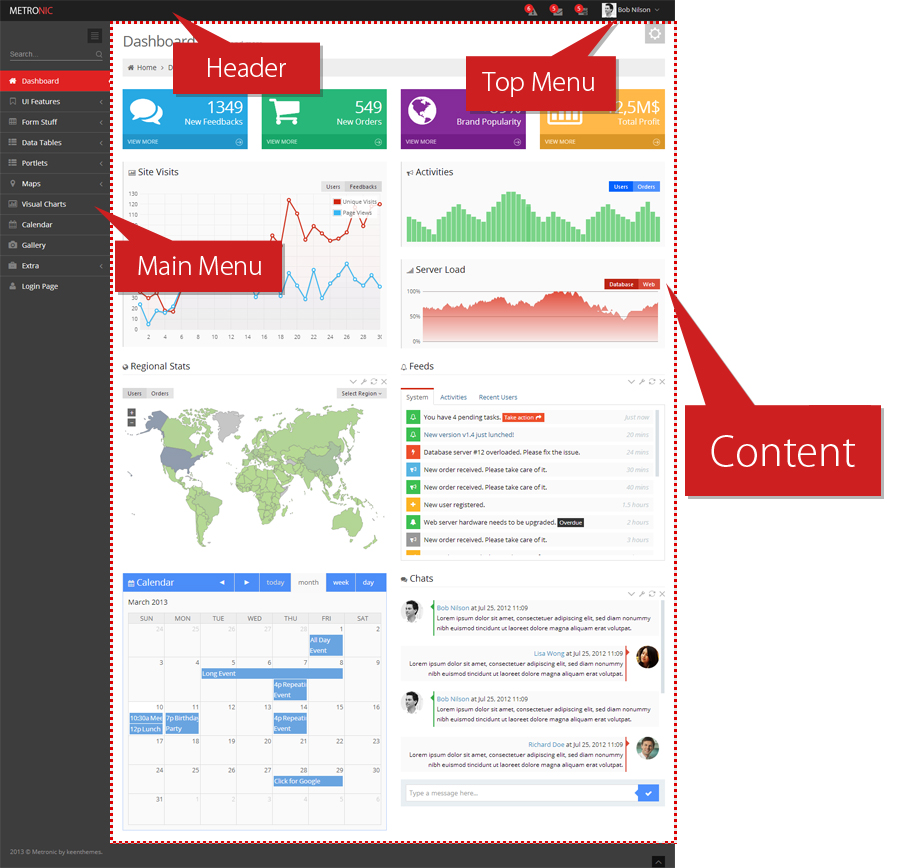

All template files have fixed structure consisting of header, top menu, main menu, content and footer as shown below:
Beginning of Page
Below code is used at the beginning of all HTML pages to detect Internet Explorer browser version
and set a spesific class applied to Internet Explorer versions.

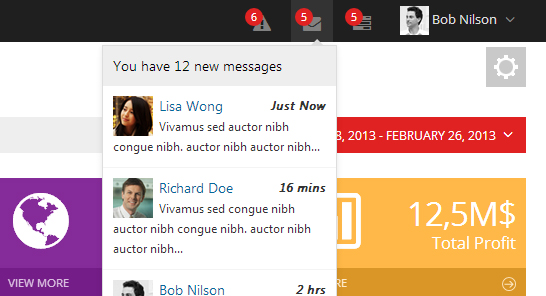

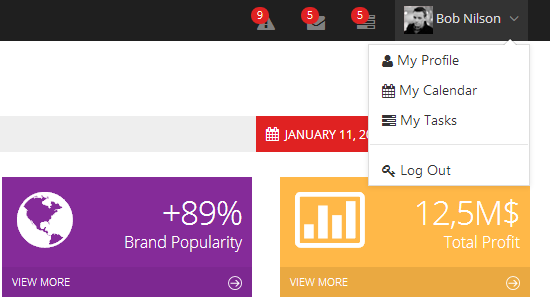

Header contains of logo and top menu bar and it used in all pages. HTML code of header container shown below:
<div class="header navbar navbar-inverse navbar-fixed-top">
<!-- BEGIN TOP NAVIGATION BAR -->
<div class="navbar-inner">
<div class="container-fluid">
<!-- HEADER ELEMENTS GO HERE -->
</div>
</div>
<!-- END TOP NAVIGATION BAR -->
</div>
Sidebar

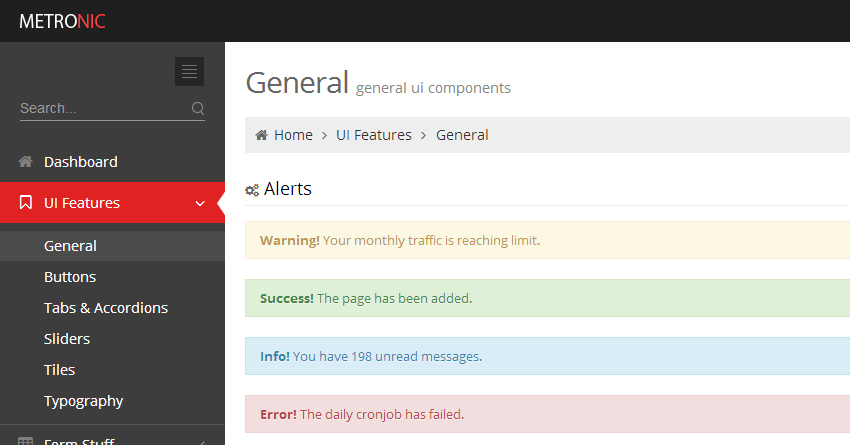

Sidebar contains of quick search form and main navigation menu. HTML code of sidebar container as shown below:
<!-- BEGIN SIDEBAR -->
<div class="page-sidebar nav-collapse collapse">
<!-- MAIN MENU GOES HERE.-->
</div>
<!-- END SIDEBAR -->
Content
Content consists of page title, breadcrumbs and page's main body. HTML code of Content container as shown below:
<!-- BEGIN PAGE -->
<div class="page-content">
<!-- BEGIN PAGE CONTAINER-->
<div class="container-fluid">
<!-- BEGIN PAGE HEADER-->
<div class="row-fluid">
<div class="span12">
<!-- BEGIN PAGE TITLE & BREADCRUMB-->
<h3 class="page-title">
Dashboard
<small>statistics and more</small>
</h3>
<ul class="breadcrumb">
<li>
<i class="icon-home"></i>
<a href="#">Home</a>
<span class="icon-angle-right"></span>
</li>
<li><a href="#">Dashboard</a></li>
</ul>
<!-- END PAGE TITLE & BREADCRUMB-->
</div>
</div>
<!-- END PAGE HEADER-->
<!-- CONTENT BODY GOES HERE >>>> -->
</div>
<!-- END PAGE CONTAINER-->
</div>
<!-- END PAGE -->
Javascript files loaded in the end of page. This will reduce page load time.
<!-- BEGIN JAVASCRIPTS(Load javascripts at bottom, this will reduce page load time) -->
<!-- BEGIN JAVASCRIPTS(Load javascripts at bottom, this will reduce page load time) -->
<!-- BEGIN CORE PLUGINS -->
<script src="assets/plugins/jquery-1.10.1.min.js" type="text/javascript"></script>
<script src="assets/plugins/jquery-migrate-1.2.1.min.js" type="text/javascript"></script>
<!-- IMPORTANT! Load jquery-ui-1.10.1.custom.min.js before bootstrap.min.js to fix bootstrap tooltip conflict with jquery ui tooltip -->
<script src="assets/plugins/jquery-ui/jquery-ui-1.10.1.custom.min.js" type="text/javascript"></script>
<script src="assets/plugins/bootstrap/js/bootstrap.min.js" type="text/javascript"></script>
<!--[if lt IE 9]>
<script src="assets/plugins/excanvas.min.js"></script>
<script src="assets/plugins/respond.min.js"></script>
<![endif]-->
<script src="assets/plugins/jquery-slimscroll/jquery.slimscroll.min.js" type="text/javascript"></script>
<script src="assets/plugins/jquery.blockui.min.js" type="text/javascript"></script>
<script src="assets/plugins/jquery.cookie.min.js" type="text/javascript"></script>
<script src="assets/plugins/uniform/jquery.uniform.min.js" type="text/javascript" ></script>
<!-- END CORE PLUGINS -->
<!-- BEGIN PAGE LEVEL PLUGINS -->
<script src="assets/plugins/jqvmap/jqvmap/jquery.vmap.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/maps/jquery.vmap.russia.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/maps/jquery.vmap.world.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/maps/jquery.vmap.europe.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/maps/jquery.vmap.germany.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/maps/jquery.vmap.usa.js" type="text/javascript"></script>
<script src="assets/plugins/jqvmap/jqvmap/data/jquery.vmap.sampledata.js" type="text/javascript"></script>
<script src="assets/plugins/flot/jquery.flot.js" type="text/javascript"></script>
<script src="assets/plugins/flot/jquery.flot.resize.js" type="text/javascript"></script>
<script src="assets/plugins/jquery.pulsate.min.js" type="text/javascript"></script>
<script src="assets/plugins/bootstrap-daterangepicker/date.js" type="text/javascript"></script>
<script src="assets/plugins/bootstrap-daterangepicker/daterangepicker.js" type="text/javascript"></script>
<script src="assets/plugins/gritter/js/jquery.gritter.js" type="text/javascript"></script>
<script src="assets/plugins/fullcalendar/fullcalendar/fullcalendar.min.js" type="text/javascript"></script>
<script src="assets/plugins/jquery-easy-pie-chart/jquery.easy-pie-chart.js" type="text/javascript"></script>
<script src="assets/plugins/jquery.sparkline.min.js" type="text/javascript"></script>
<!-- END PAGE LEVEL PLUGINS -->
<!-- BEGIN PAGE LEVEL SCRIPTS -->
<script src="assets/scripts/app.js" type="text/javascript"></script>
<script src="assets/scripts/index.js" type="text/javascript"></script>
<!-- END PAGE LEVEL SCRIPTS -->
<script>
jQuery(document).ready(function() {
App.init(); // initlayout and core plugins
Index.init();
Index.initJQVMAP(); // init index page's custom scripts
Index.initCalendar(); // init index page's custom scripts
Index.initCharts(); // init index page's custom scripts
Index.initChat();
Index.initMiniCharts();
Index.initDashboardDaterange();
Index.initIntro();
});
</script>
<!-- END JAVASCRIPTS -->
HTML Code Comment Sample
All the html, css and javascript file contents have easy to refer and meaningful comments:
<!-- BEGIN LOGO -->
<a class="brand" href="index.html">
<img src="assets/plugins/img/logo.png" alt="logo" />
</a>
<!-- END LOGO -->
<!-- BEGIN RESPONSIVE MENU TOGGLER -->
<a href="javascript:;" class="btn-navbar collapsed" data-toggle="collapse" data-target=".nav-collapse">
<img src="assets/plugins/img/menu-toggler.png" alt="" />
</a>
<!-- END RESPONSIVE MENU TOGGLER -->
var initDrag = function (el) {
// create an Event Object (http://arshaw.com/fullcalendar/docs/event_data/Event_Object/)
// it doesn't need to have a start or end
var eventObject = {
title: $.trim(el.text()) // use the element's text as the event title
};
// store the Event Object in the DOM element so we can get to it later
el.data('eventObject', eventObject);
// make the event draggable using jQuery UI
}
Metronic comes with 6 color themes, default, blue, grey, brown, purple, light.
To setup a selected theme. Include style/themes/[theme_name].css in page head.
For instance, if you like to use blue theme, include style/themes/blue.css css file. CSS file load order should be followed as shown below:

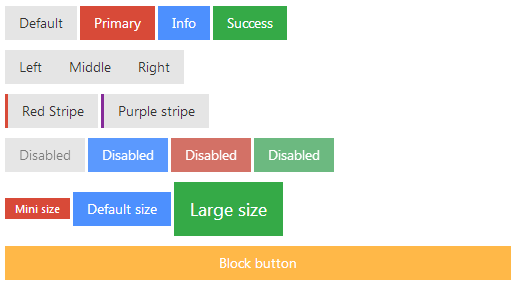

Button styles can be applied to any element with the .btn class applied.
Basically, you'll want to apply these to only
<a> and <button>, <input> elements.
Core javascript initialization implemented in assets/scripts/app.js thorugh App object as shown below.
This approach enables an easy modular implementation to initialize jquery plugins and other application logics.
var App = function () {
var localVariable; //local variable
var sampleFunction = function() {
//sample function code
}
return {
//main method to initiate template pages
init: function () {
sampleFunction() // call local function
},
//sample method declaration
sampleMethod: function (test)
{
alert(test);
}
};
}();
Core Handler Functions defined in assets/scripts/app.js
Below will be listed all handler functons implemented in App object:
handleInit
Main initialization function.
handleDesktopTabletContents
Handlers switching of page element classes for desktop and tablet mode.
handleSidebarState
Hides sidebar toggler if window width smaller than 900px(for table and phone mode)
runResponsiveHandlers
Runs the responsive handler functions set by global API function App.addResponsiveHandler(function) which will be executed when screen size or content size changed.
handleResponsiveOnResize
Handles responsive elements on window resize.
handleResponsive
Handles responsive layout on screen size resize or mobile device rotate.
handleSidebarToggler
Handles sidebar hide/close.
handleMainMenu
Initializes & handles sidebar navigation menu(the main menu).

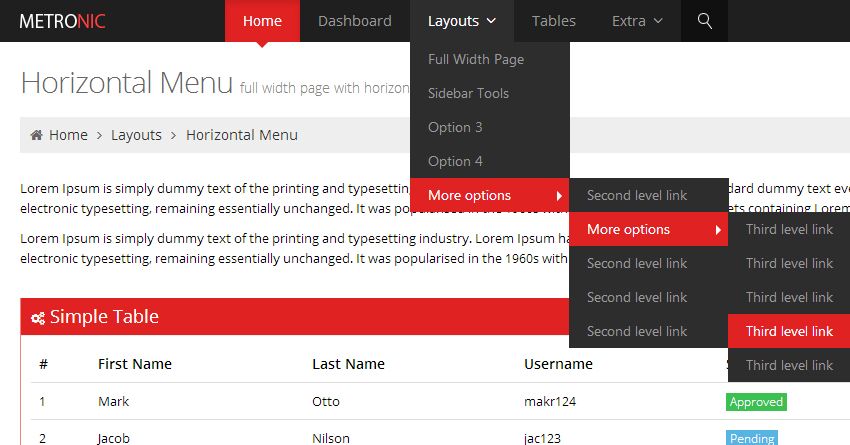

handleHorizontalMenu
Initializes & handles horizontal navigation menu.

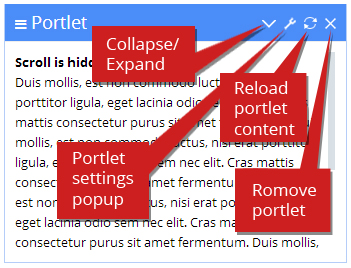

handlePortletTools
Initializes & handles portlet tools as described in below image.
handleFixInputPlaceholderForIE
Fixes and enabled HTML5 input placeholder support for Internet Explorer 8 & 9.
This jQuery plugin generates sparklines (small inline charts) directly in the browser using data supplied either inline in the HTML, or via javascript.
jQuery Input Mask is a jquery plugin which create an input mask. An inputmask helps the user with the input by ensuring a predefined format. This can be usefull for dates, numerics, phone numbers.
Jcrop is the quick and easy way to add image cropping functionality to
your web application. It combines the ease-of-use of a typical jQuery
plugin with a powerful cross-platform DHTML cropping engine that is
faithful to familiar desktop graphics applications.
This jQuery plugin generates sparklines (small inline charts) directly in the browser using data supplied either inline in the HTML, or via javascript.
This project is a fork of bootstrap-datetimepicker project which doesn't include Time part.
Some others parts has been improved as for example the load process which now accepts the ISO-8601 format.
I've copy/pasted the forked project's documentation and added my specifications.
Enable a group of DOM elements to be sortable. Click on and drag an element to a new spot within the list, and the other items will adjust to fit. By default, sortable items share draggable properties.
Modern browsers like Firefox, Safari, Chrome and Opera support the HTML5 canvas tag to allow 2D command-based drawing. ExplorerCanvas brings the same functionality to Internet Explorer. To use, web developers only need to include a single script tag in their existing web pages
<!-- BEGIN:File Upload Plugin JS files-->
<script src="assets/plugins/jquery-file-upload/js/vendor/jquery.ui.widget.js"></script>
<!-- The Templates plugin is included to render the upload/download listings -->
<script src="assets/plugins/jquery-file-upload/js/vendor/tmpl.min.js"></script>
<!-- The Load Image plugin is included for the preview images and image resizing functionality -->
<script src="assets/plugins/jquery-file-upload/js/vendor/load-image.min.js"></script>
<!-- The Canvas to Blob plugin is included for image resizing functionality -->
<script src="assets/plugins/jquery-file-upload/js/vendor/canvas-to-blob.min.js"></script>
<!-- The Iframe Transport is required for browsers without support for XHR file uploads -->
<script src="assets/plugins/jquery-file-upload/js/jquery.iframe-transport.js"></script>
<!-- The basic File Upload plugin -->
<script src="assets/plugins/jquery-file-upload/js/jquery.fileupload.js"></script>
<!-- The File Upload file processing plugin -->
<script src="assets/plugins/jquery-file-upload/js/jquery.fileupload-fp.js"></script>
<!-- The File Upload user interface plugin -->
<script src="assets/plugins/jquery-file-upload/js/jquery.fileupload-ui.js"></script>
<!-- The main application script -->
<script src="assets/plugins/jquery-file-upload/js/main.js"></script>
<!-- The XDomainRequest Transport is included for cross-domain file deletion for IE8+ -->
<!--[if gte IE 8]><script src="js/cors/jquery.xdr-transport.js"></script><![endif]-->
JQVMap is a jQuery plugin that renders Vector Maps. It uses resizable Scalable Vector Graphics (SVG) for modern browsers like Firefox, Safari, Chrome, Opera and Internet Explorer 9. Legacy support for older versions of Internet Explorer 6-8 is provided via VML.
Uniform masks your standard form controls with custom themed controls. It works in sync with your real form elements to ensure accessibility and compatibility
This twitter bootstrap plugin builds a wizard out of a formatter tabbable structure. It allows to build a wizard functionality using buttons to go through the different wizard steps and using events allows to hook into each step individually.
The jQuery Validation Plugin provides drop-in validation for your existing forms, while making all kinds of customizations to fit your application really easy
jQuery Migrate plugin to simplify the transition from older versions of jQuery. The plugin restores deprecated features and behaviors so that older code will still run properly on jQuery 1.9 and later. Use the uncompressed development version to diagnose compatiblity issues, it will generate warnings on the console that you can use to identify and fix problems. Use the compressed production version to simply fix compatibility issues without generating console warnings
Jcrop is the quick and easy way to add image cropping functionality to
your web application. It combines the ease-of-use of a typical jQuery
plugin with a powerful cross-platform DHTML cropping engine that is
faithful to familiar desktop graphics applications.
This jQuery plugin generates sparklines (small inline charts) directly in the browser using data supplied either inline in the HTML, or via javascript.
jQuery Input Mask is a jquery plugin which create an input mask. An inputmask helps the user with the input by ensuring a predefined format. This can be usefull for dates, numerics, phone numbers.
Modern browsers like Firefox, Safari, Chrome and Opera support the HTML5 canvas tag to allow 2D command-based drawing. ExplorerCanvas brings the same functionality to Internet Explorer. To use, web developers only need to include a single script tag in their existing web pages
This project is a fork of bootstrap-datetimepicker project which doesn't include Time part.
Some others parts has been improved as for example the load process which now accepts the ISO-8601 format.
JQVMap is a jQuery plugin that renders Vector Maps. It uses resizable Scalable Vector Graphics (SVG) for modern browsers like Firefox, Safari, Chrome, Opera and Internet Explorer 9. Legacy support for older versions of Internet Explorer 6-8 is provided via VML.
Uniform masks your standard form controls with custom themed controls. It works in sync with your real form elements to ensure accessibility and compatibility
This twitter bootstrap plugin builds a wizard out of a formatter tabbable structure. It allows to build a wizard functionality using buttons to go through the different wizard steps and using events allows to hook into each step individually.
This twitter bootstrap plugin builds a wizard out of a formatter tabbable structure. It allows to build a wizard functionality using buttons to go through the different wizard steps and using events allows to hook into each step individually.
The jQuery Validation Plugin provides drop-in validation for your existing forms, while making all kinds of customizations to fit your application really easy
FIXED: Info block alignment in RTL Version -> Extra -> Search Results -> Booking Search:
Modified style file: assets/extra_search.html
Version 1.2.3 – 3 May 2013
NEW: Full RTL(Right To Left) Support:
Created a new folder template_content_rtl for RTL version
The theme layout, all the html templates and the plugins converted to RTL version
NEW: Loading Page Content via Ajax:
Added a new sample page: layout_ajax.html
Added loading image for ajax content loading process bar: assets/img/ajax-loading.gif
Modified the main script file: assets/scripts/app.js
NEW: Responsive Data Tables:
Added a new sample page: table_responsive.html
Modified the main css file: assets/css/style.css
NEW: About Us Page
Added a new sample page: page_about.html
Added a new css file: assets/css/pages/about-us.css
NEW: Contact Us Page
Added a new sample page: page_contact.html
Added a new javascript file: assets/scripts/contact-us.js
NEW: Enhanced Bootstrap Datapicker from
Current Bootstrap Datepicker plugin replaced with a better one from
The plugin assetsassets/plugins/bootstrap-datepicker and demo samples are not modified since this new plugins is fully compatible enhanced version of the previouse one.
FIXED: Broken Portlet Header Issue on Webkit Browsers
Modified portlet HTML mackup and the main css file assets/css/style.css
Since v1.2 comes with a big javascript, html and css changes, we strongly recommended you to use v1.2 as base and merge the code from earlier version into v1.2.
To upgrade from v1.2.1 to v1.2.2 you may just replace the assets folder.
To upgrade from v1.3 to v1.4 you may just replace the assets folder and merge back your own changes.
Please do not forget to backup your files before the upgrade. If you encountered any problem during the upgrade please contact our support at support@keenthemes.com
